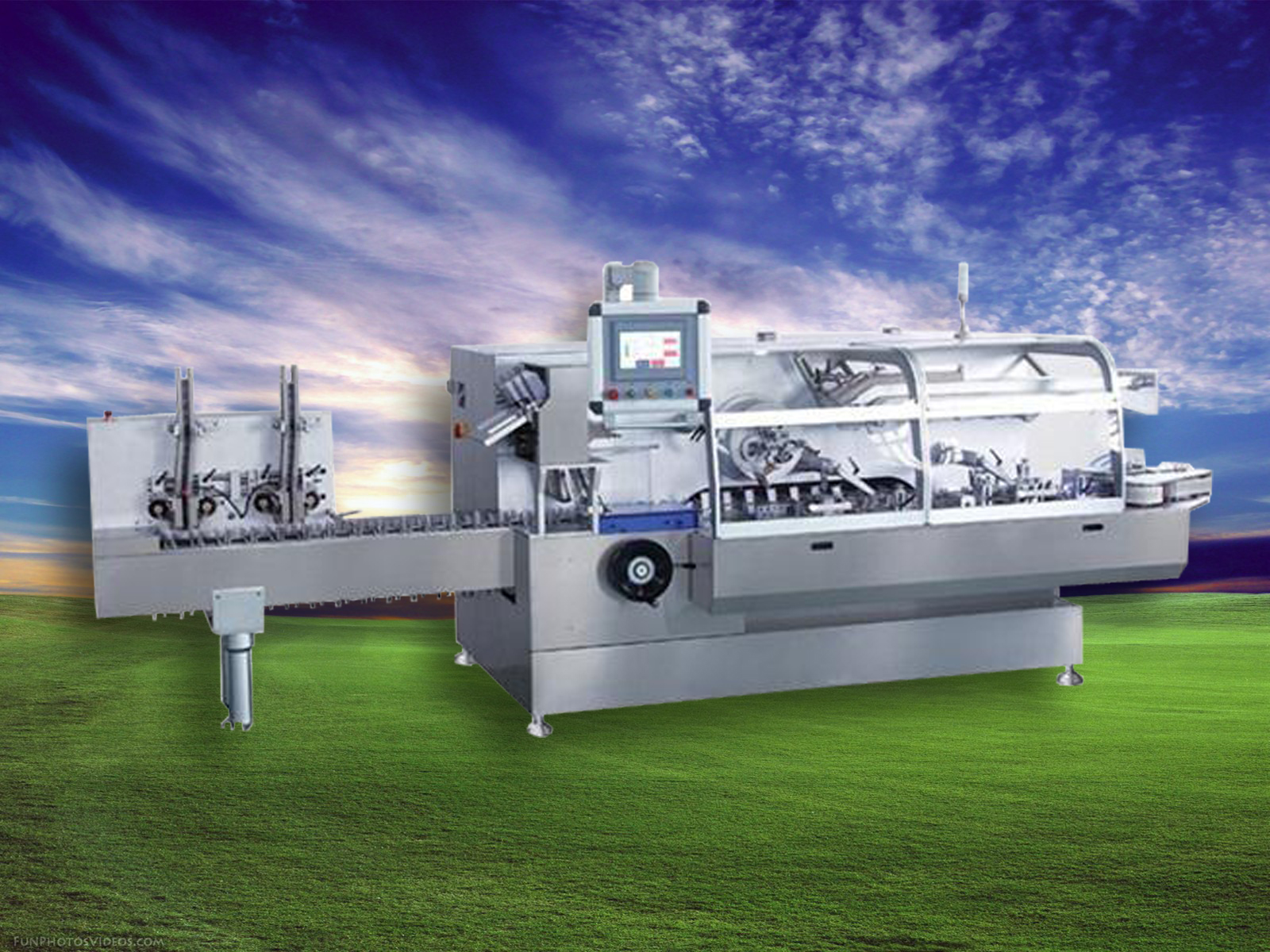

Automatic High Speed Continuous Cartooning Machine for Tube-Tray-Bag
Instructions:
High Speed Cartoning Machine is a new model with a basic innovation design on advanced technology, also conforming to pharmaceutical industry GMP standards. With high efficiency, high production performance capacity, leaftlet folding and conveying, opening and carton forming, posterior propelling structure and all related technologies have reached European and United States standards, simple design and continuous posterior propelling structure make operation and maintenance more convenient.
Suitable for automatic inserting of the ALU-PVC blister type, bottles, soft tubes, ALU-PVC soft strips and pouches in cartons, can also be connected to a suitable machine to form inline (integrated)
Spesification:
|
Item |
|
Technical parameters |
|
|
|
|
|
|
|
Encasing speed |
|
260 boxes/min |
|
|
|
|
|
|
|
|
Quality requirement |
250-350g/M2[Base on carton size] |
|
|
Box |
|
|
|
|
|
Dimension range(L×W×H) |
(70-180)mm×(35-80)mm×(14-50)mm |
|
|
|
|
|
|
|
|
Quality requirement |
60-70g/M2 |
|
|
|
|
|
|
|
Leaflet |
Unfolded leaflet |
(80-250)mm×(90-170)mm |
|
|
specification(L×W) |
|||
|
|
|
||
|
|
|
|
|
|
|
Fold range(L×W) |
[1-4]Fold |
|
|
|
|
|
|
|
|
Working pressure |
≥0.6mpa |
|
|
Compressed air |
|
|
|
|
|
Air consumption |
160-200L/min |
|
|
|
|
|
|
|
Power supply |
|
380V 50HZ |
|
|
|
|
|
|
|
Motor power |
|
5kw |
|
|
|
|
||
|
Machine dimension(L×W×H) |
4800mm×1600mm×1860mm |
||
|
|
|
|
|
|
Machine weight |
|
3000kg |
|
|
|
|
|
|
