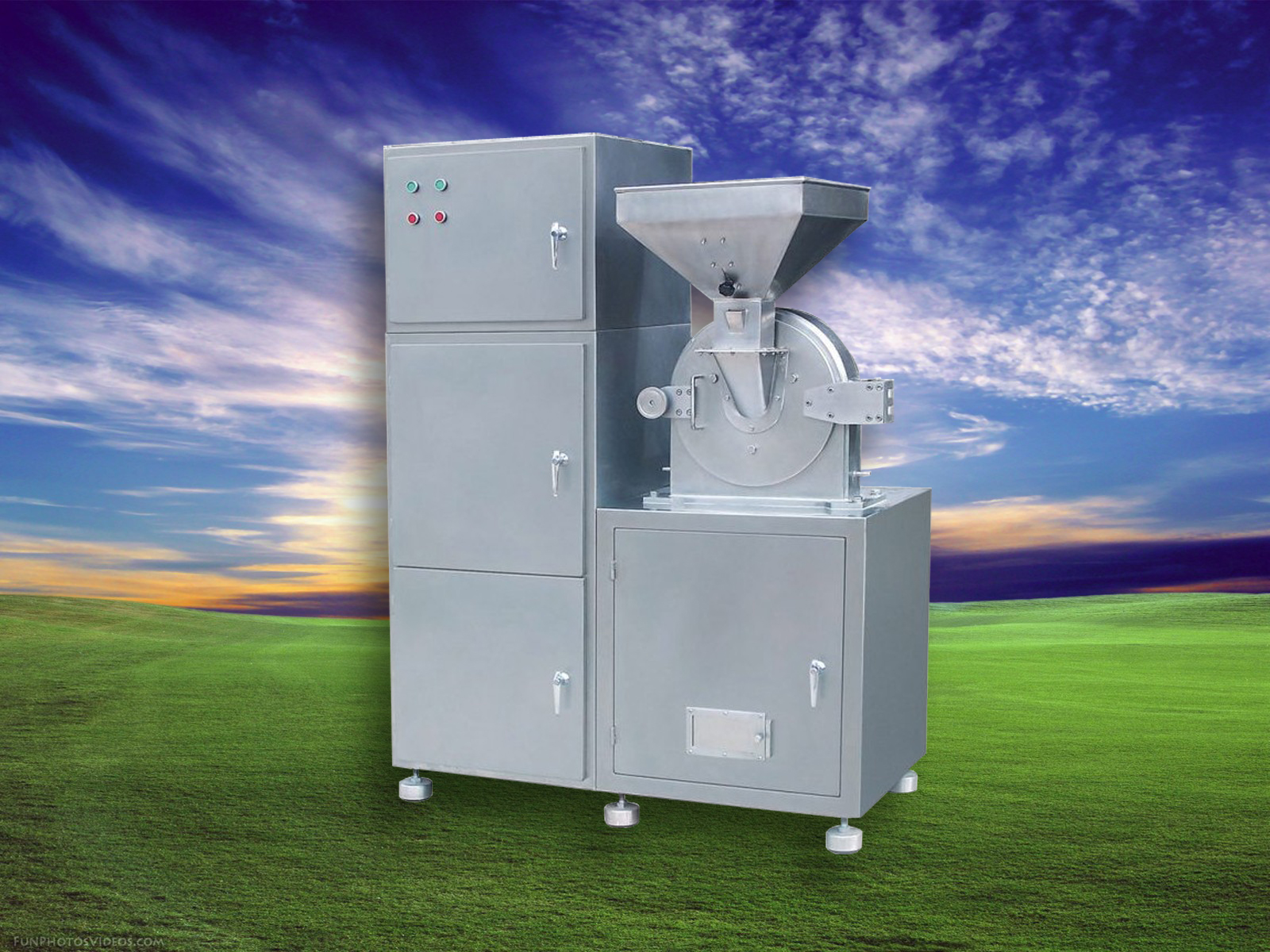

WF Series Dust Absorption Pulverizer
Main Application
The machine is mainly applied for the material grinding for the trades of pharmaceutics, chemical and foodstuff, etc.
Working Method
The machine uses the relative movement between the active fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the collection box by the centrifugal force, The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to GMP standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.
Technical Data
|
Model |
180B |
200B |
300B |
400B |
600B |
|
Capacity(kg/h) |
5-30 |
20-150 |
30-300 |
40-800 |
60-1200 |
|
Speed of principal axis(r/min) |
5200 |
4500 |
3800 |
3400 |
2600 |
|
Size of input granules(mm) |
<5 |
<6 |
<10 |
<12 |
<5 |
|
Fineness of products(Mesh) |
12-120 |
12-120 |
12-120 |
12-120 |
12-120 |
|
Grinding power(kw) |
2.2 |
4 |
5.5 |
11 |
22 |
|
Dust absorption power(kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
|
Weight(kg) |
200 |
300 |
450 |
620 |
1150 |
|
Overall Size(L×W×H)mm |
820×400×1350 |
1100×600×1400 |
1200×700×1450 |
1400×800×1650 |
1650×950×2100 |
