Main Application

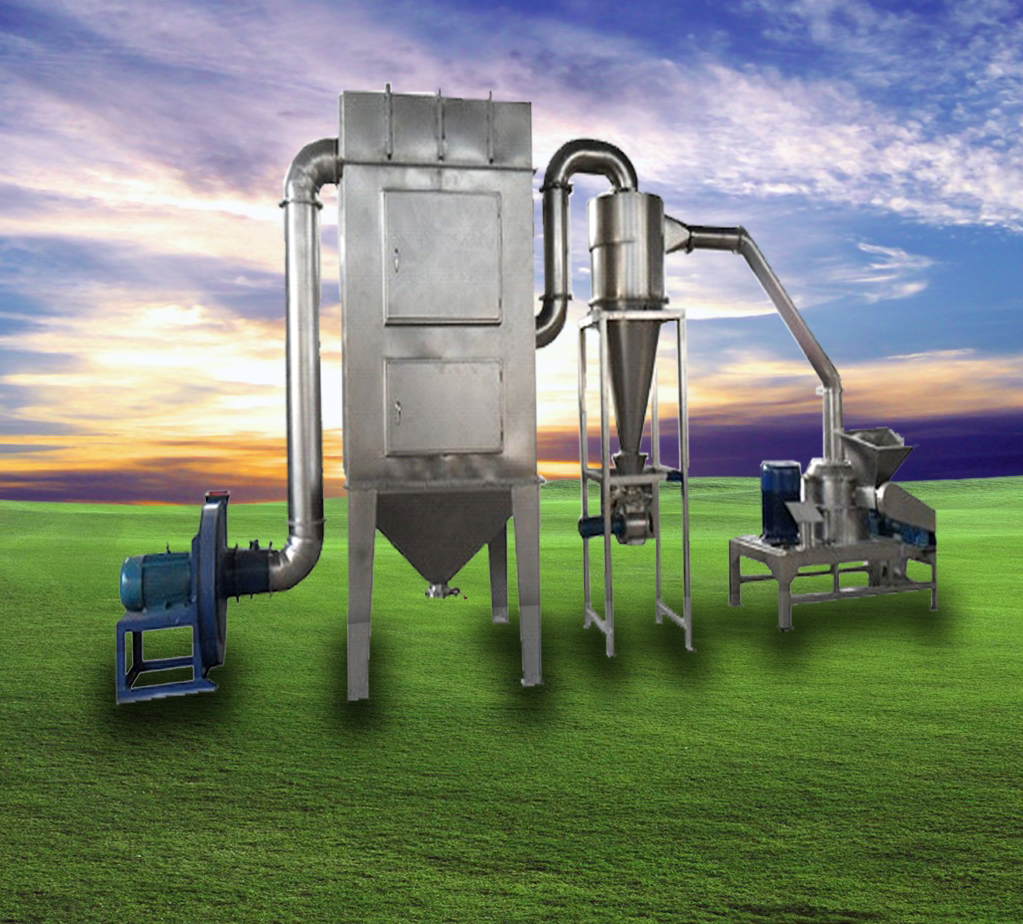

• This machine compose of main motor, auxiliary motor and electrical cabinet
• This machine no sieve or mesh, this machine has the compact design and reasonable structure
• The machine duo to the negative pressure sends heat out continuously in operation that this machine is suitable for the grinding of heat sensitive materials
• This pulverizer is widely used in the chemical. Foodstuff , pharmacy, cosmetic, resin and so on ,this machine has ranking world advanced levels

Working Method

The raw material is delivered to the grinding chamber via hopper by spiral feeder, the raw material is cut and sheared by the high speed cutters, then the material is moved into the whirl wind separator and the sack dust catcher by the negative pressure sucking method, the dust is collected and recycled via cloth bag or filter of dust absorption box, there is no dust flying during production, so as to improve the utilization and decrease the production cost

Technical parameters

Model                                                 : WFJ-30

Capacity ( kg/h)                                : 50 – 800

Feed Size (mm)                                 : < 10

Output Size ( mesh )                         : 80 – 500

Motor Power ( kw )                          : 42.85

Spindle Speed ( rpm )                       : 3650

Weight ( kg )                                      : 2000

Dimension (mm )                              : 6640 x 1300 x 3960
