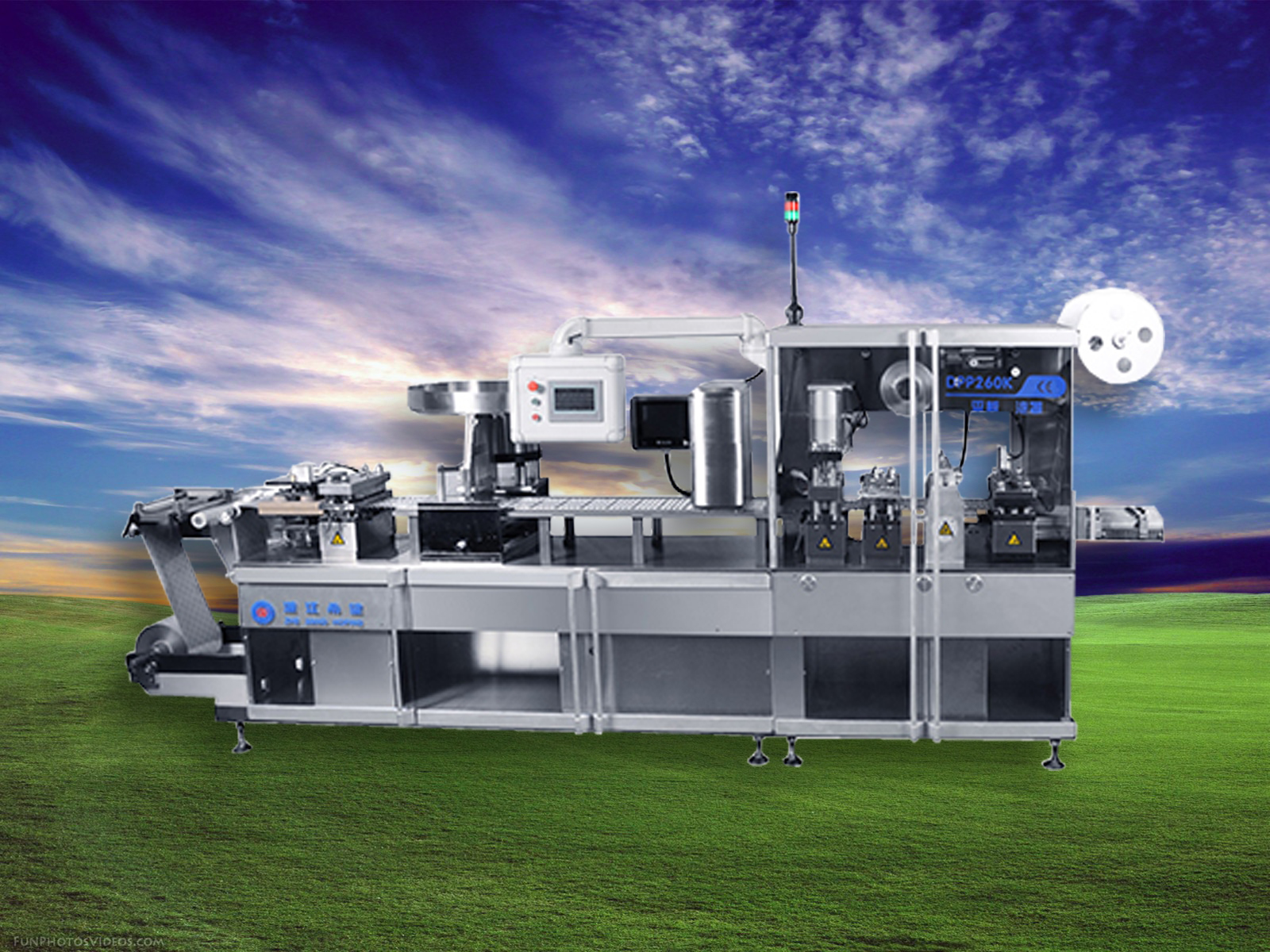

Blister Packing Machine DPP260K
Sample
Fission Combination Structure: accessible to elevators or renovated clean workshops. Length of stroke by digital control,running speed directly set on human-machine interface according to the material feeding conditions. Printing Register,Missing Pills Rejection Device.
DPP260K Main Technical Parameter
|
Main Technical Parameter |
||
|
Capacity(Cycle/min) |
AL/PL≤70,AL/AL≤40 |
|
|
Range of stroke(mm) |
40-120 |
|
|
Packing material |
Pharmacy PVC(mm) |
(0.2-0.5)×260 |
|
PTP alu foil(mm) |
(0.02-0.05)×260 |
|
|
Cold form alu(mm) |
(0.09-0.15)×260 |
|
|
Clean compressed air(pressure) |
0.5～0.7Mpa |
|
|
Air consumption(m³min) |
≥0.3 |
|
|
Power |
AC380V 50HZ 9.5 KW |
|
|
Water chiller for moulds |
1.5P with 60L/h consumption |
|
|
Overall dimension(L×W×H)(mm) |
4700×820×1820 |
|
|
Net weight(kg) |
2800 |
|
