MODEL

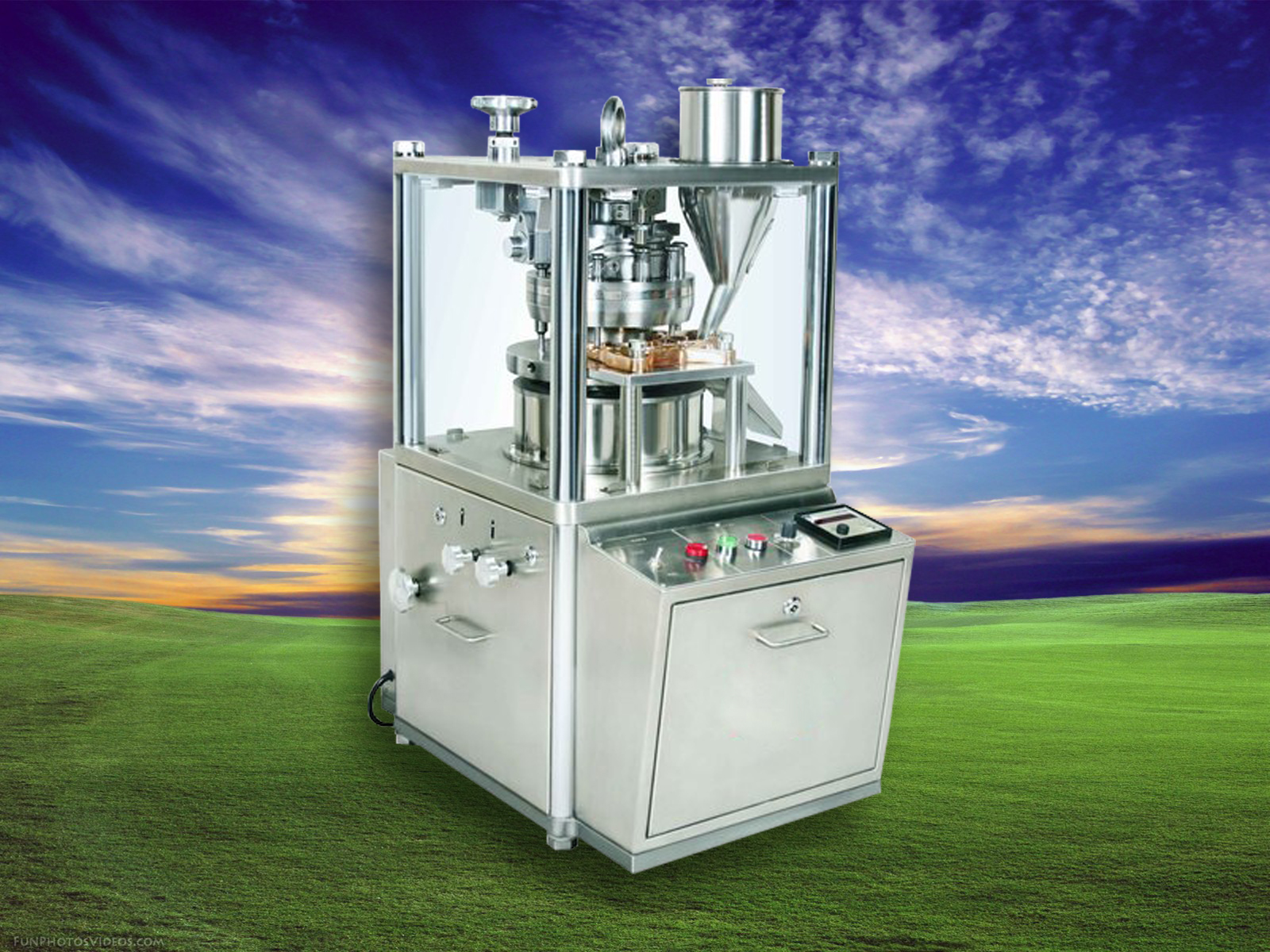

BI-LAYER MINI PRESS I

No. of Station

14 Station (7Stn D & 7Stn B)

Type of Tooling

D+B

Pre-Compression Pressure (Max)

2 Ton

Main-Compression Pressure (Max)

6 Tons

Depth of Fill (Single Layer)

16 mm

Depth of Fill (Double Layer)

8 mm

Max. Tablet Dia.

24 mm

Turret RPM (Min / Max) (Single Layer)*

10- 30 RPM

Turret RPM (Min / Max) (Double  Layer)*

10-20 RPM

Diameter of Die

             For D Tooling – 38.10 MM

             For B Tooling – 30.16 MM

Length of Die

             For D Tooling – 23.81 MM

             For B Tooling – 22.22 MM

Diameter of Punch

             For D Tooling – 25.35 MM

             For B Tooling – 19.06 MM

Length of Punch

             For D Tooling – 133.6 MM

             For B Tooling – 133.6 MM

Main Electric Motor

3.0 HP, 415 V, 50 Hz
