Principle

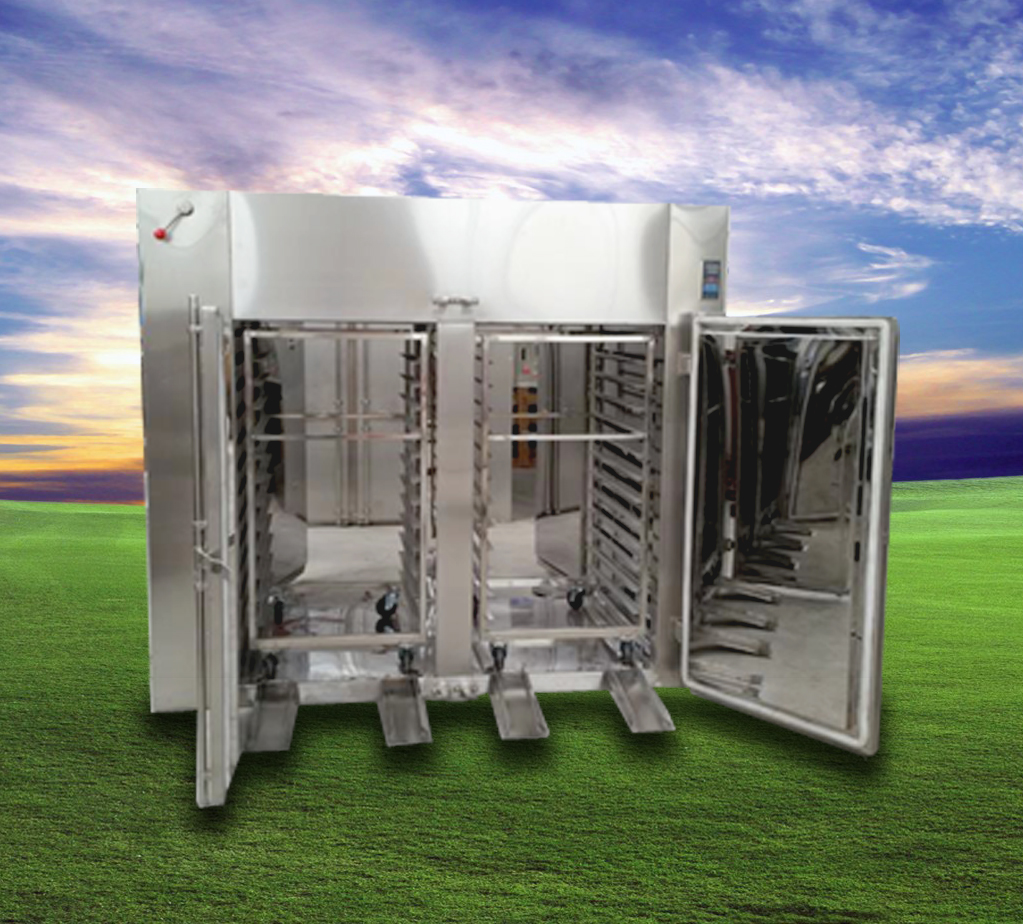

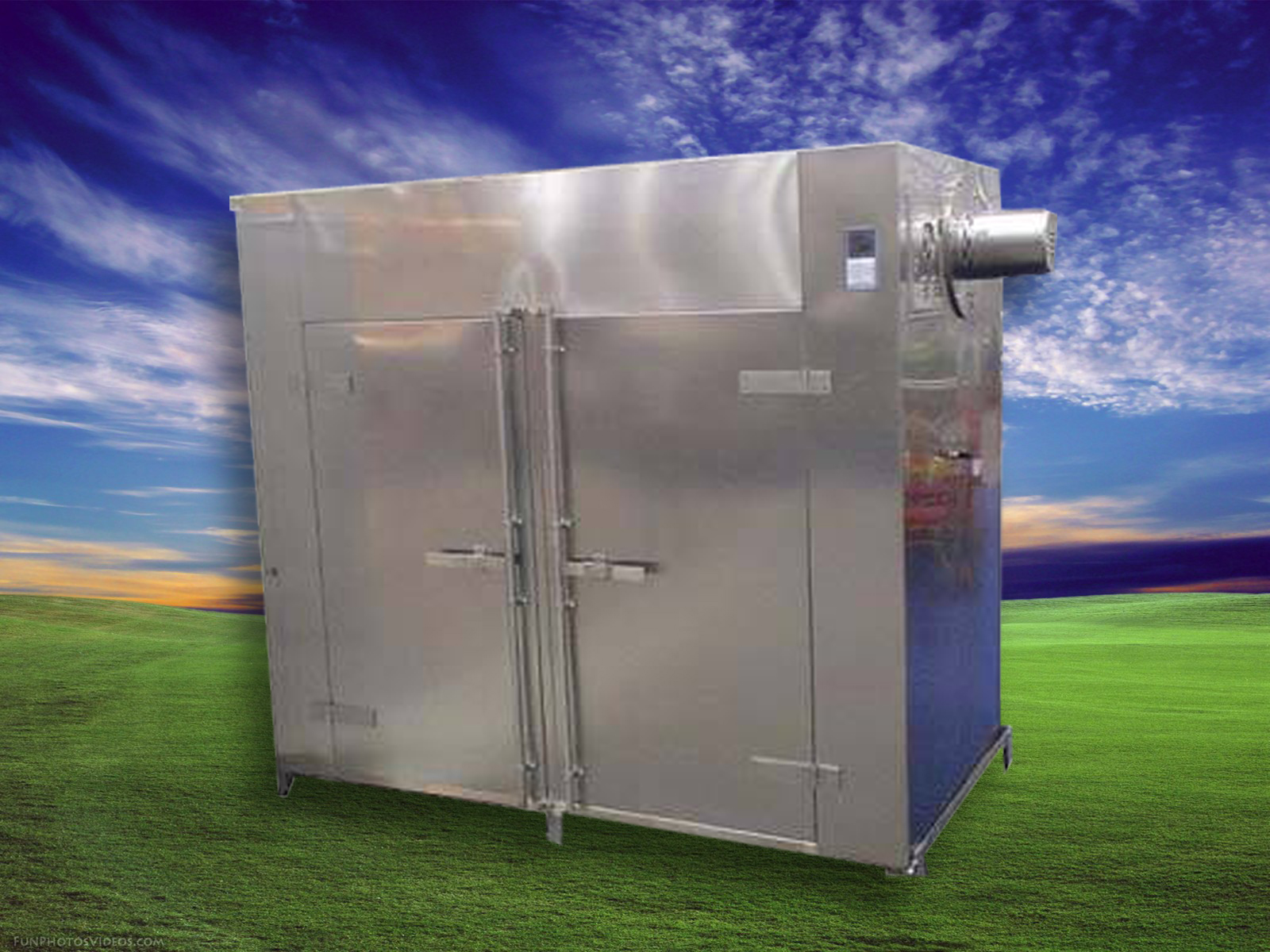

CT-C series hot air circulating Drying oven adopts noise elimination and thermal stable axial flow fan and automatic temperature control system. The entire circulation system is enclosed to make that the heat efficiency of the drying oven increases from 3-7% of the traditional drying oven to 35-40% of the present one. The highest heat efficiency can be up to 50%. The successful design of CT-C hot air circulating oven makes that the hot air circulating drying oven in our country reach the advanced level in the world. It saves energy and increases the economic benefit.

Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And hot air oven can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.

CT-C hot air oven features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.

Feature

1. Options of heat source: steam, electricity, or far infrared, or both steam electricity.
2. Drying temperature: steam heating 50-130˚C, Max.140˚C.
3. Machine use the automatic control system and computer control system
4. Commonly using steam pressure 0.2-0.8MPa(2-8 bar), if machine heated by steam (steam supplied by client)
5. For CT-C-O, electric heated, rated power consumption:9kW, real consumption : 3-5kW/h.
6. For operation temperature of over 140˚C or less than 60˚C, please indicate when order.
7. The ovens and baking trays made by our factory are standard dimensions (640x460x45mm), and can be exchanged each other.
8. Baking tray also drill hole if client have detail requirement.
9. Manufacturer can design and manufacture the explosion proof hot air oven to dry the Flammable and explosive materials.
10. Manufacturer can design the hot air oven that set working time and delaying turn off fan so that reduce the heater hot energy gather inside the hot air chest.
11. Machine materials : AISISUS304 , AISISUS316L, and other material .
12. For the electrical component  , we mainly use international brand such as ABB ,Siemens or Schneider.
13. Smooth running, reliable performance, easy operation.
14. Highly polished inner and outer surfaces of the machine, no dead comer, easy to clear, no cross contamination. Confining to the requirement of GMP.
15. Control system has more choices, such as push button , HMI+PLC and so on.

Advantage

1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.
2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.
3. The whole machine is low in the noise. The operation is in balance.
4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.
5. The machine can be used for drying various materials
