Descriptions

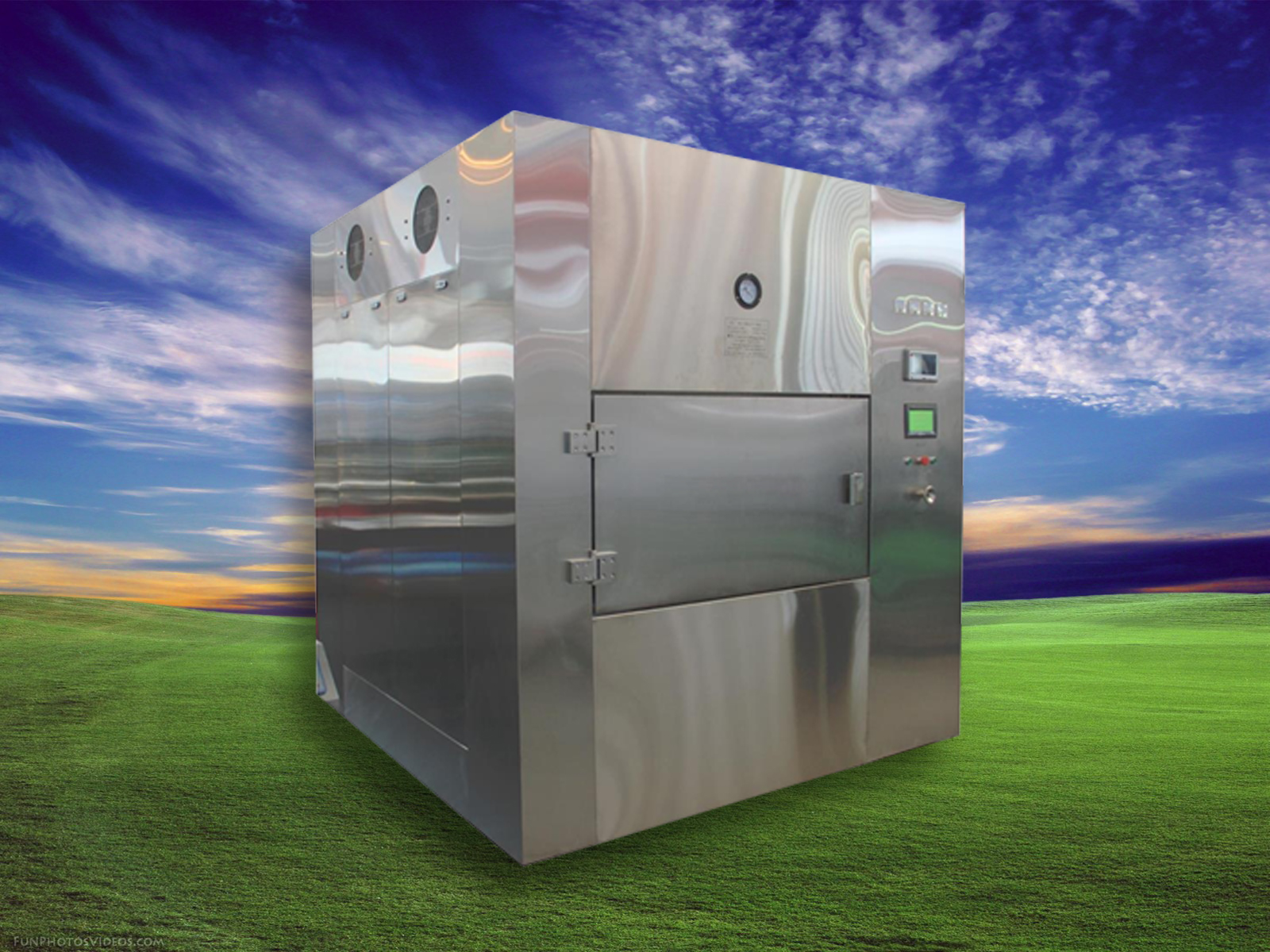

This equipment is microwave vacuum dryer which is widely used in pharmaceutical, foodstuff and chemical industries for drying of chips, granules, powder, tablet, pills, extracts and so on.

Equipment Parameters

1. Product Introduce

• The name of raw material: food extract
• Before to dried, the shape of raw material: liquid
• After to dried, the shape of raw material: chips
• Primary moisture: 40-60%
• Final moisture: 4%
• Density of material: 1.2g/cm3
• Average capacity: 300kg/6 hours
• Working time: 6 hours per day
• Maximum drying temperature: 90℃
• Other require: The machine made by 304 stainless steel

1. Design Parameter

• Model: WHZ-4
• Number of microwave tube: 24pcs
• Power of microwave: 24kw
• Water evaporation capacity: 20-24kg/h
• Cooling way of microwave tube: water cooling
• Working temperature: Maximum 90℃
• Vacuum pressure minimum: 0.097Mpa
• Number of material trays: 20pcs
• Tray size: 500x380x135mm
• Loading capacity: 3kg per tray
• Total loading capacity: 60kg per batch
• Total power of system: 38.07kw
• Overall dimensional: LxWxH: 2200x2200x2400mm
• Weight: 2800kg
